Aufbau
Ich habe inzwischen meine restlichen Platinen komplett abgegeben…
Download
Downloads für den EMS-Gateway:
EMS-Gateway V2.0
EMS-Gateway V2.1
Bestückung Oben V2.1
Bestückung Unten V2.1
Bauteilliste
| @#dddddd:Wert | @#dddddd:Bauform | @#dddddd:Bauteile |
| blau | c2 | LED1 |
| orange | c2 | LED2 |
| 1n | C-EUC0805 | C11 |
| 10µ | C-EUC0805 | C10 |
| 10k | R-TRIMM3314J | R27 |
| 10MHz | CRYSTALSM49 | Q1 |
| 68p | C-EUC0805 | C9 |
| 78L05SMD | 78L05SMD | IC6 |
| LD1117 | LD1117S50TR | IC7 |
| 100 | R-EU_R0805 | R30 |
| 100k | R-EU_R0805 | R15 |
| 330 | R-EU_R0805 | R25 |
| 390 | R-EU_R0805 | R12 |
| 560 | R-EU_R0805 | R2 |
| ADUM1201 | ADUM1201 | IC3, IC5 |
| BAT46SMD | BAT46SMD | D8 |
| BC847 | BC847 | T2 |
| BC857ASMD | BC857ASMD | T1 |
| BLM21PG221 SN1D | WE-KIHQ_0805 | L6 |
| DC-8S | DC-8S | X4 |
| DCPP3 | DCPP3 | X4b |
| EMS-Bus | W237-02P | X2 |
| FT245RL | FT245RL | IC4 |
| LM393D | LM393D | IC1 |
| MB4S | MB4S | B1 |
| MINI-USB-B | Würth 65100516121 | X3 |
| CAN, EMS-Bus | W237-02P | X1, X2 |
| Mode/Reset | SWS004 | S3 |
| PIC18F4580_TQFP | PIC18F4580_TQFP | IC2 |
| 1k | R-EU_R0805 | R1, R5 |
| 4µ7 | WE-CBF_1210 | L1, L2 |
| 10n | C-EUC0805 | C8, C13 |
| 22p | C-EUC0805 | C2, C3 |
| 47k | R-EU_R0805 | R7, R13 |
| 270 | R-EU_R0805 | R3, R6 |
| 330n | C-EUC0805 | C4, C12 |
| 470 | R-EU_R0805 | R28, R29 |
| BAT54S | BAT54S | D5, D6 |
| 47µ / 50V | CPOL-EUE | C19, C20, C21 |
| 910 | R-EU_R0805 | R21, R22, R23, R24 |
| 100n | C-EUC0805 | C1, C5, C6, C7, C14, C15, C16, C17, C18 |
| 1N4148SMD | 1N4148SMD | D1, D2, D3, D4, D7, D9 |
| 4k7 | R-EU_R0805 | R8, R16, R17, R18, R19, R20 |
| 10k | R-EU_R0805 | R4, R4B, R9, R10, R11, R14, R31 |
| 1µ2 | WE-CBF_1210 | L4 |
| 120 | R-EU_R0805 | R26 |
| ACM3225 | ACM3225 | L3 |
| MCP2551SN | MCP2551SN | U1 |
| PSD2CAN | PSD2CAN | D10 |
| Term. | PINHD-1×2 | SV9 |
| VA-0505S | VA-0505S | DC1 |
| ZJYS81 | ZJYS81 | L5 |

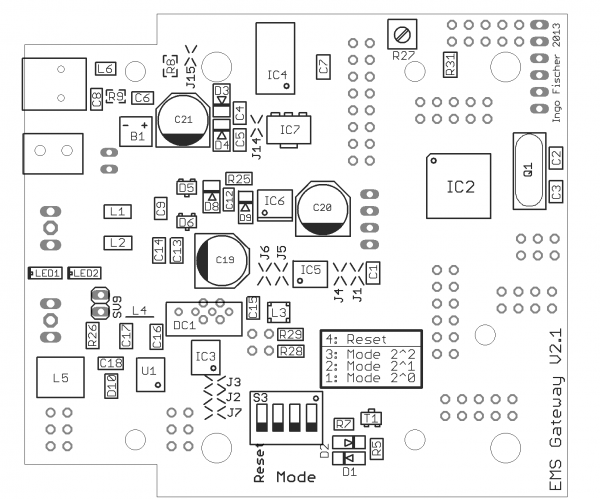

Bestückung Oberseite

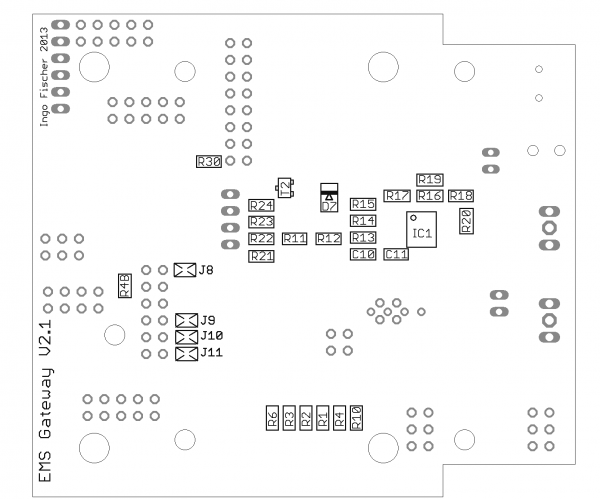

Bestückung Unterseite
